Single Lip Rod Seals
K673
Design Introduction
Kintowe 673 is an asymmetric seal offering superlative dry rod sealing for medium and heavy duty applications.
The seal is a single lip design and is ideal for applications which require a double lip wiper such as the Kintowe K864 or K839.
Manufactured in Kintowe ®05, the Kintowe K673 is an extremely flexible seal making installation very easy. The Kintowe K673 is also available in Kintowe ®01.
Advantages
● Easy installation
● Dry rod sealing performance when used with Kintowe K864 or K839 wipers

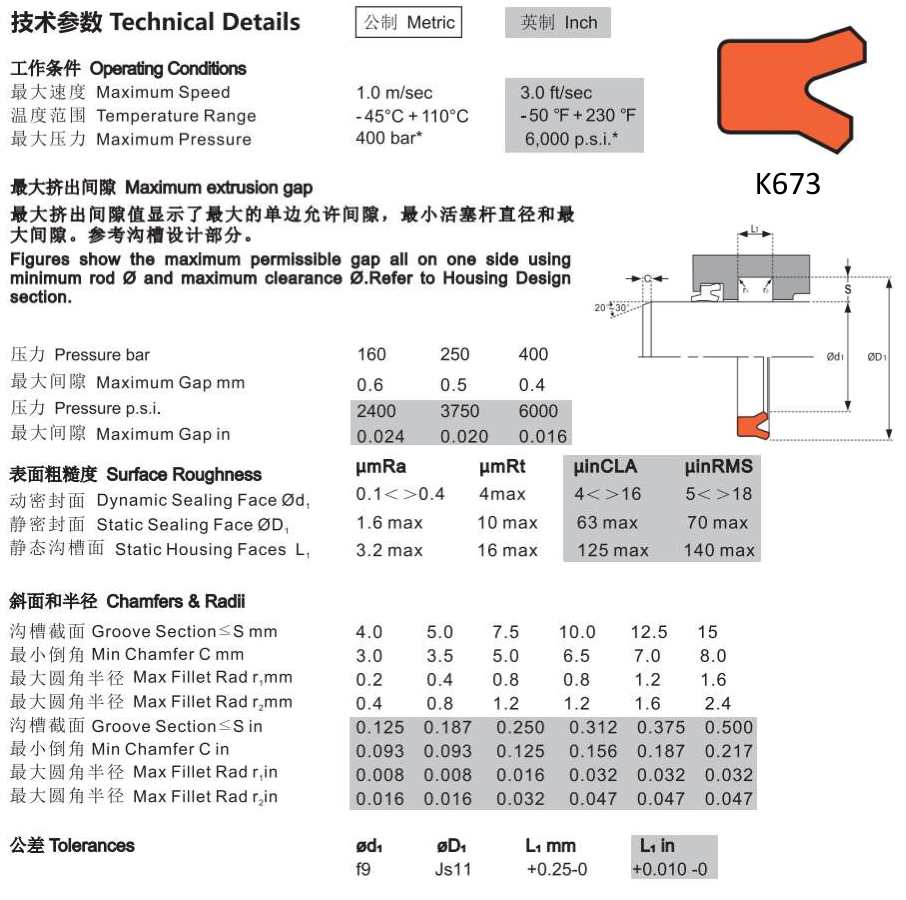

Specification
| Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
| 30 | 43 | 10.0 | 11.0 | 6730300 | 70 | 85 | 9.0 | 10.0 | 6730701 | |
| 30 | 45 | 10.0 | 11.0 | 6730301 | 75 | 88 | 10.0 | 11.0 | 6730750 | |
| 32 | 42 | 6.0 | 7.0 | 6730320 | 75 | 90 | 9.0 | 10.0 | 6730751 | |
| 35 | 45 | 6.0 | 7.0 | 6730350 | 75 | 90 | 10.0 | 11.0 | 6730752 | |
| 35 | 50 | 10.0 | 11.0 | 6730351 | 80 | 93 | 10.0 | 11.0 | 6730800 | |
| 40 | 50 | 6.0 | 7.0 | 6730400 | 80 | 95 | 9.0 | 10.0 | 6730801 | |
| 40 | 50 | 9.0 | 10.0 | 6730401 | 80 | 95 | 10.0 | 11.0 | 6730802 | |
| 40 | 55 | 6.0 | 7.0 | 6730402 | 80 | 100 | 12.0 | 13.0 | 6730803 | |
| 40 | 55 | 10.0 | 11.0 | 6730403 | 85 | 100 | 9.0 | 10.0 | 6730850 | |
| 50 | 60 | 8.0 | 9.0 | 6730500 | 85 | 100 | 10.0 | 11.0 | 6730851 | |
| 50 | 63 | 9.0 | 10.0 | 6730501 | 85 | 105 | 12.0 | 13.0 | 6730852 | |
| 50 | 65 | 8.0 | 9.0 | 6730502 | 90 | 105 | 9.0 | 10.0 | 6730900 | |
| 50 | 65 | 10.0 | 11.0 | 6730503 | 90 | 105 | 10.0 | 11.0 | 6730901 | |
| 55 | 68 | 10.0 | 11.0 | 6730550 | 90 | 110 | 12.0 | 13.0 | 6730902 | |
| 55 | 70 | 9.0 | 10.0 | 6730551 | 95 | 110 | 9.0 | 10.0 | 6730950 | |
| 60 | 73 | 10.0 | 11.0 | 6730600 | 95 | 110 | 10.0 | 11.0 | 6730951 | |
| 60 | 75 | 9.0 | 10.0 | 6730601 | 95 | 115 | 12.0 | 13.0 | 6730952 | |
| 60 | 75 | 10.0 | 11.0 | 6730602 | 100 | 115 | 9.0 | 10.0 | 6731000 | |
| 60 | 78 | 10.0 | 11.0 | 6730603 | 100 | 115 | 10.0 | 11.0 | 6731001 | |
| 65 | 80 | 9.0 | 10.0 | 6730650 | 100 | 120 | 12.0 | 13.0 | 6731002 | |
| 65 | 80 | 10.0 | 11.0 | 6730651 | 135 | 145 | 6 | 7 | 67313500 | |
| 70 | 83 | 10.0 | 11.0 | 6730700 | 135 | 150 | 9 | 10 | 67313501 |
