Rod Seals
K663
Design Introduction
Kintowe K663 is an asymmetric seal offering superlative dry rod sealing for light and medium duty applications.
The seal is a single lip modification of the well established Kintowe K605 profile and is ideal for applications which require a double lip wiper such as the Kintowe K839.
Manufactured in Kintowe ®01, the Kintowe K663 is an extremely flexible seal making installation very easy .The Kintowe K663 is also available in Kintowe ®06 material.
Advantages
●Easy installation
●Dry rod sealing performance when used with Kintowe K839 wipers

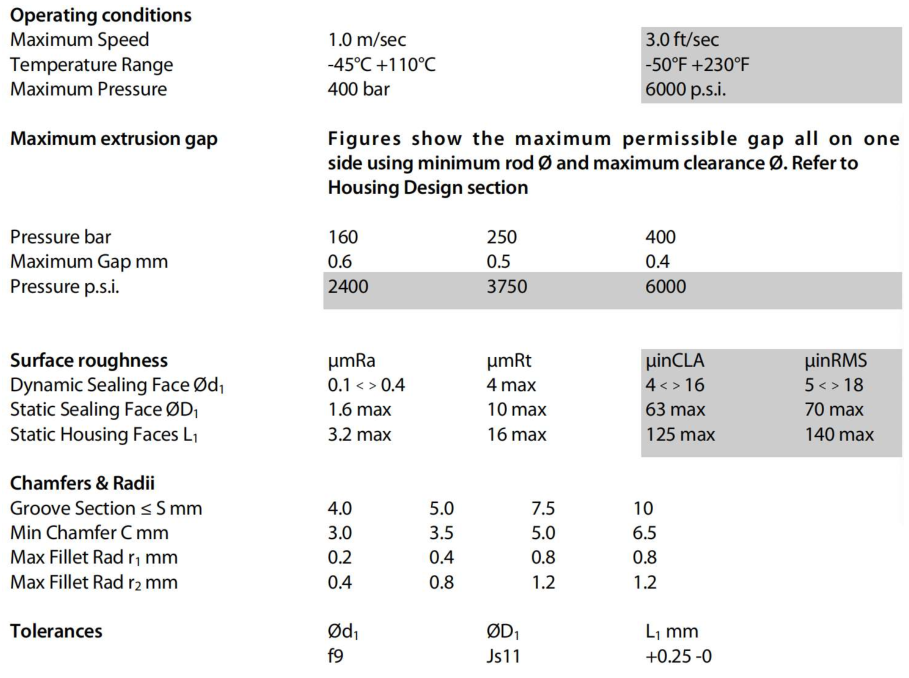

Specification
| Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
| 12 | 22 | 7.3 | 8.0 | 6630120 | 50 | 57 | 9.0 | 10.0 | 6630500 | |
| 14 | 24 | 8.2 | 9.0 | 6630140 | 50 | 58 | 8.2 | 9.0 | 6630501 | |
| 16 | 24 | 5.7 | 6.3 | 6630160 | 50 | 60 | 7.3 | 8.0 | 6630502 | |
| 16 | 26 | 7.3 | 8.0 | 6630161 | 50 | 60 | 10.0 | 11.0 | 6630503 | |
| 18 | 26 | 5.7 | 6.3 | 6630180 | 50 | 65 | 11.4 | 12.5 | 6630504 | |
| 20 | 28 | 4.5 | 5.0 | 6630200 | 54 | 64 | 10.0 | 11.0 | 6630540 | |
| 20 | 30 | 7.3 | 8.0 | 6630201 | 55 | 65 | 10.0 | 11.0 | 6630550 | |
| 22 | 32 | 7.3 | 8.0 | 6630220 | 55 | 67 | 10.0 | 11.0 | 6630551 | |
| 24 | 34 | 7.8 | 8.5 | 6630240 | 56 | 66 | 6.5 | 7.5 | 6630560 | |
| 25 | 33 | 5.7 | 6.3 | 6630250 | 56 | 66 | 10 | 11 | 6630561 | |
| 25 | 35 | 7.3 | 8.0 | 6630251 | 60 | 68 | 8 | 9 | 6630600 | |
| 25 | 40 | 10.0 | 11.0 | 6630252 | 60 | 70 | 7.3 | 8 | 6630601 | |
| 26 | 36 | 10.0 | 11.0 | 6630260 | 60 | 70 | 10 | 11 | 6630602 | |
| 28 | 36 | 5.7 | 6.3 | 6630280 | 60 | 75 | 11.4 | 12.5 | 6630603 | |
| 30 | 38 | 5.7 | 6.3 | 6630300 | 65 | 75 | 11.8 | 13 | 6630650 | |
| 30 | 38 | 8.2 | 9.0 | 6630301 | 65 | 80 | 11.4 | 13 | 6630651 | |
| 30 | 40 | 7.3 | 8.0 | 6630302 | 70 | 80 | 6 | 7 | 6630700 | |
| 32 | 40 | 5.7 | 6.3 | 6630320 | 70 | 85 | 11.4 | 13 | 6630701 | |
| 32 | 42 | 7.3 | 8.0 | 6630321 | 75 | 95 | 14.5 | 16 | 6630750 | |
| 35 | 43 | 5.7 | 6.3 | 6630350 | 80 | 90 | 11.8 | 13 | 6630800 | |
| 35 | 45 | 7.3 | 8.0 | 6630351 | 80 | 100 | 14.5 | 16 | 6630801 | |
| 35 | 45 | 10.0 | 11.0 | 6630352 | 85 | 97 | 8.7 | 9.6 | 6630850 | |
| 36 | 44 | 5.8 | 6.3 | 6630360 | 85 | 100 | 11.8 | 13 | 6630851 | |
| 36 | 44 | 8.0 | 9.0 | 6630361 | 90 | 100 | 6.5 | 7.5 | 6630900 | |
| 36 | 46 | 7.3 | 8.0 | 6630362 | 95 | 110 | 9 | 10 | 6630950 | |
| 40 | 48 | 5.7 | 6.3 | 6630400 | 100 | 115 | 9 | 10 | 6631000 | |
| 40 | 48 | 8.2 | 9.0 | 6630401 | 100 | 115 | 11.8 | 13 | 6631001 | |
| 40 | 50 | 7.3 | 8.0 | 6630402 | 100 | 120 | 14.5 | 16 | 6631002 | |
| 40 | 50 | 8.2 | 9.0 | 6630403 | 140 | 155 | 9 | 10 | 6631400 | |
| 40 | 50 | 10.0 | 11.0 | 6630404 | 160 | 175 | 9 | 10 | 6631600 | |
| 45 | 53 | 8.2 | 9.0 | 6630450 | 170 | 185 | 9 | 10 | 6631700 | |
| 45 | 55 | 7.3 | 8.0 | 6630451 | 180 | 200 | 12 | 13 | 6631800 | |
| 45 | 55 | 10.3 | 11.0 | 6630452 | 280 | 296 | 18.0 | 19.0 | 6632800 | |
| 49 | 59 | 7.3 | 8.0 | 6630490 |
